Community Urban Redevelopment Plan Powhatan Point Medical Center and Assisted Living Complex Development Project

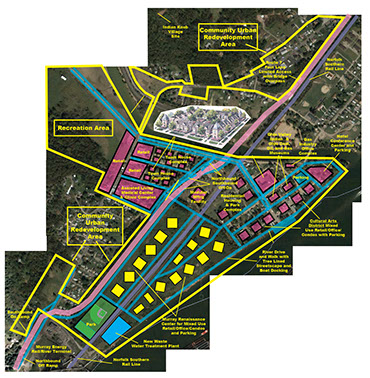

The proposed CURD land use for Powhatan Point Medical Center and Assisted Living Complex Development Project (shown in Figure 2, 3, 4 and 6) represents the current Powhatan Clinic Facility location. The area highlighted in blue includes the adjacent Assisted Living Complex (see Figures) provides a cross section of the Medical Center and Assisted Living Center which sits upon a two level parking garage capable of supporting 300+ vehicles.



The PPMC is a four story structure with two stories below ground and two stories above.  The adjacent Assisted Living Center is a five story with two stories below ground and three stories above, connected by a covered bridge and common parking garage and delivery/maintenance/utilities.



The complex addresses the needs of a rural medical center where hospital care is greater than 16 mile away, we are planning a multi-use/multi-doctor medical center with an adjacent assisted living center.  It combines the needs of emergency/walk-in clinic/out-patient care/surgery rooms/lab analysis MRI-Xray-Sonogram diagnostics/limited temporary intensive care/hospital beds support.

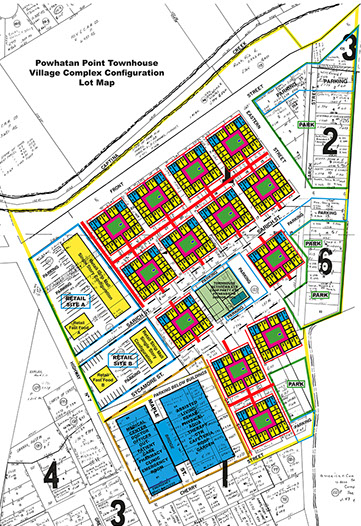

(Click here for  Townhouse Development Plan).

​



​

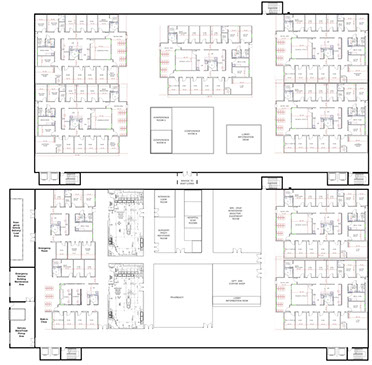

Powhatan Point Medical Center Facility Configuration



The PPMC is a four story structure with two stories below ground and two stories above.  The adjacent Assisted Living Center is a five story with two stories below ground and three stories above, connected by a covered bridge and common parking garage and delivery/maintenance/utilities.



To address the needs of for a rural medical center where hospital care is greater than 16 mile away, we are planning a multi-use/multi-doctor medical center with an adjacent assisted living center.  It combines the needs of emergency/walk-in clinic/out-patient care/surgery rooms/lab analysis MRI-Xray-Sonogram diagnostics/limited temporary intensive care/hospital beds support.



Ultimately, the goal of the PPMC is to become the primary location for education, preventative care, wellness, outpatient procedures and outpatient surgeries – becoming in essence, the hospital’s “Front Door.” A successful PPMC will provide a consistent stream of referrals for the inpatient hospital. This makes brand recognition across your outpatient and inpatient facilities critical – and architectural design can be a powerful tool to create brand loyalty and awareness. Developing consistent signage and wayfinding programs is important, so that a patient and their family knows they are in YOUR hospital.



First Floor

o  Medical Offices Shared by Multiple Doctors in Various Specialties       o  Emergency Room

o  Walk-in Clinic/Rooms/Labs/Test Analysis            o  Ambulance Service            o  Paramedics Response           o  Two Surgery Rooms for Trama/Out-Patient Care              o  MRI/X-Ray/Sonogram Analysis Service               o Short Term Intensive Care/Recovery/Stay Rooms           o  Pharmacy               o  Gift Shop/Coffee Shop



Second Floor

o  Medical Offices Shared by Multiple Doctors in Various Specialties: (Optical/Hearing-Nose-Throat/Dental/Diabetes/Arthritis/Mental Therapy/Oncology/Cardiology/Dermatology/Nutrition/Internal Medicine/Prosthetics/Orthopedist/ Plastic-General Surgeons/Gynecologist etc.)

o Conference Rooms/Lobby/Information Desk/Seating



​







Powhatan Point Assisted Living Facility Configuration



The adjacent Assisted Living Center offers physical theraphy and rehabilitation physical support utilizing fitness equipment and aquatic pool therapy to further recovery and wellness.  It also serves the needs of the assisted living tenants and community needs.  The medical center is directly connected by covered bridge to the assisted living center to further integrate their advisory/functional assistance to its patients.



o  140’x250’ 35,000sqft (1/2/3 floors)        o  140’x230’ 32,000sqft (4/5 floors)

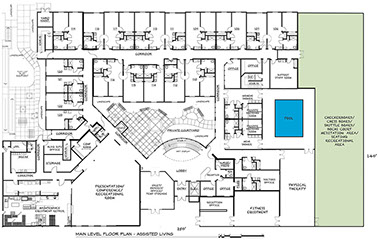

Basic Features                                                                             First - Main Floor - 15’ Height

o  Five story structure - driveway cover for access        o  18 A/L Rooms (8-1,,350sqft:10-675sqft one bedrm)

o  Two story parking (125 cars)/utilities/delivery             o  Physical therapy/fitness center/pool

o  Three story/physical therapy/64 A/L rooms/                o  Covered recreation/activity/conference rooms

    offices/recreation/dining/presentation rooms             o  On-site doctor/nursing/orderly/security coverage

o  All areas support handicap/ walking handrails           o  Offices for doctor/nurses/orderly/security/admin

o  Elevator/covered bridge access to Medical Ctr           o  Building/equipment maintenance repair area



​

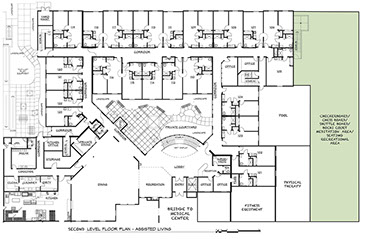

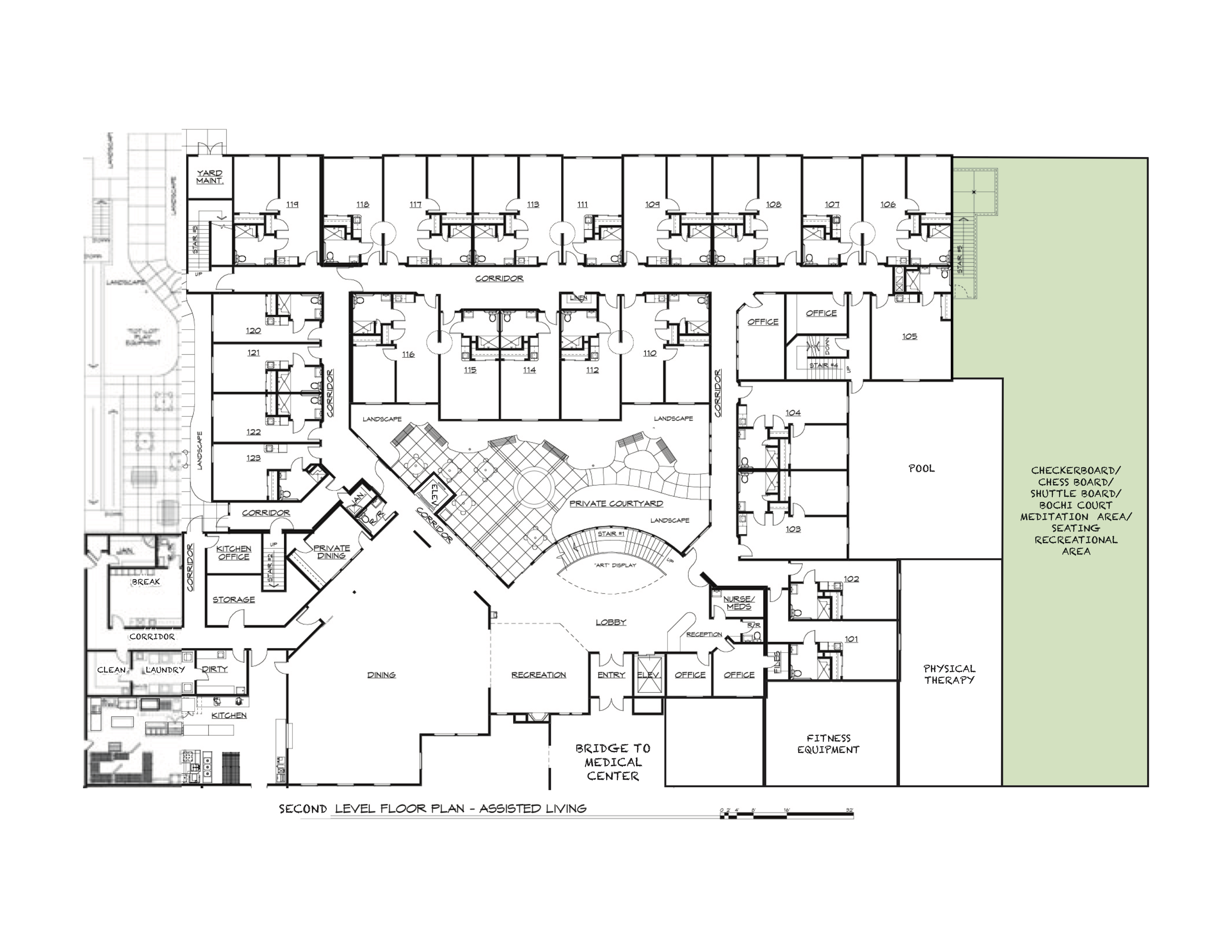

Second Floor - 10’ Height

o  Physical therapy/fitness center/pool

o  Covered recreation/activity/conference rooms

o  23 A/L Rooms (11-1,350sqft:12-675sqft one bedrm)

o On-site doctor/nursing/orderly/security coverage

o  Offices for doctor/nurses/orderly/security/admin

o  Building/equipment maintenance repair area



​

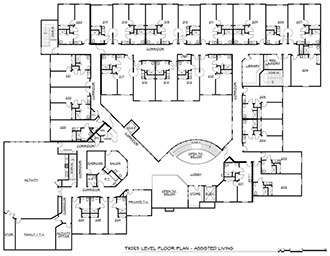

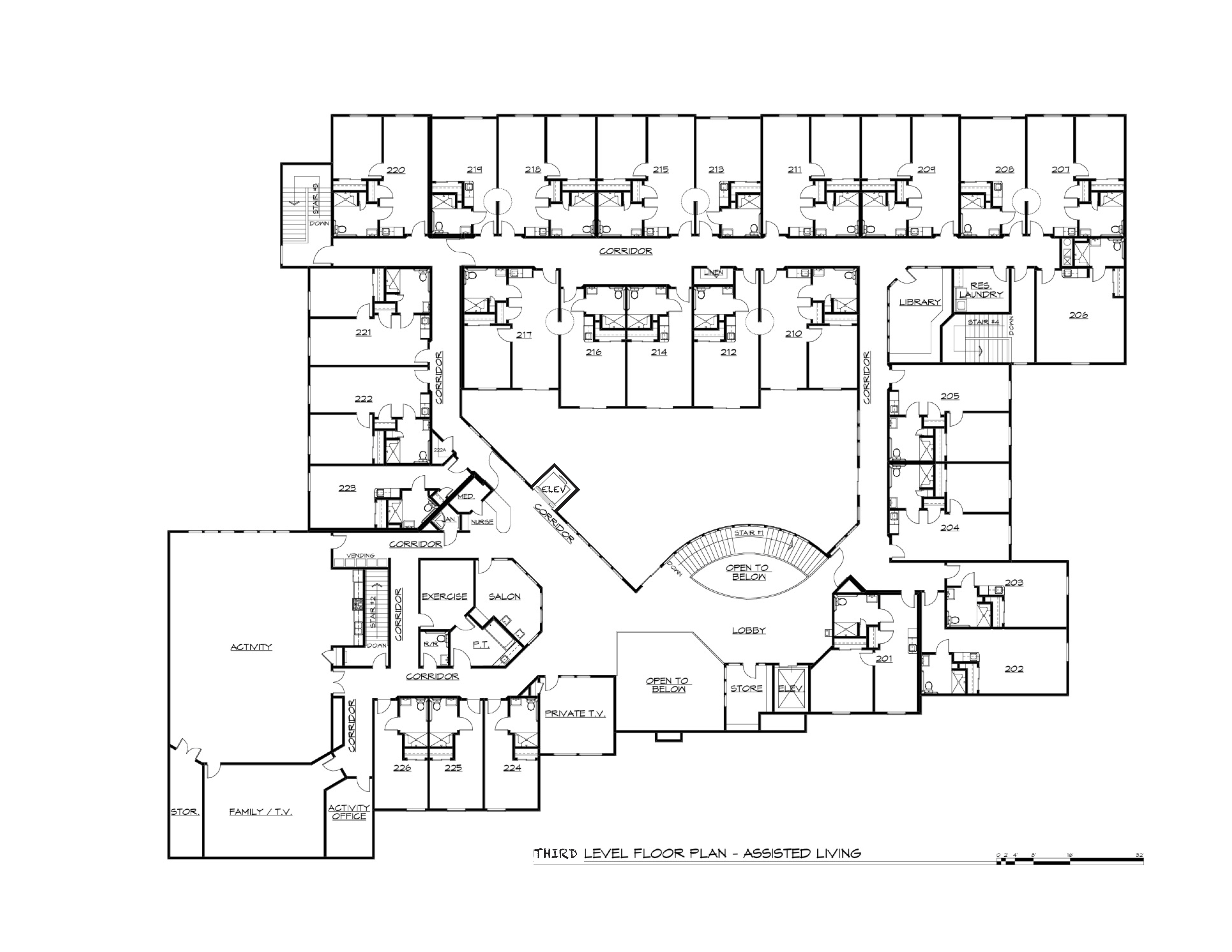

Third Floor - 10’ Height

o  Physical therapy/fitness center/pool

o  Covered recreation/activity/conference rooms

o  23 A/L Rooms (11-1,350sqft:12-675sqft one bedrm)

o On-site doctor/nursing/orderly/security coverage

o  Offices for doctor/nurses/orderly/security/admin

o  Building/equipment maintenance repair area

​





Tenant Functional Needs

The Assisted Living Center (ALC) serves the regional needs for special assistance for individuals unable to completely care for themselves in their residences.  Assistance is offered in on-call nursing/medication distribution, physical assistance, food preparation, dining: breakfast/lunch/dinner, fitness/pool workouts and rehabilitation therapy.  Nutritionist work with physical therapists and food preparers to develop diets to improve tenant wellness.  Resident ALC nursing and Medical Center resident doctors with adjacent medical facilities assure immediate response to any acute/emergency situations.



Recreation and Activities

Tenants are offered a wide array of activities and recreational areas to play games/hear presentations/review library media, meditate/swim/physically workout,



ALC Rooms

ALC resident rooms fully support handicap needs, including some rooms configured to meet indigent overhead lifts, recliner lift chairs, walk-in showers.  Small kitchens offer functional needs for cooking/refrigeration/washing.  Larger rooms with 1,350 sqft provide separate living/bedroom areas.  All units offer windows facing to the outside or interior atrium.  Dining/cleaning/laundry/internet/phone/TV/computer services are included for all tenants. Beds are selected based upon need.



Security and Maintenance

Facility access is controlled through Main Floor security provisions with face recognition at all major entry points to tenant room areas.  Cameras are used throughout all levels with central monitoring.
